Cutting Machine For FKM Gaskets, FPM Gasket, Viston Seal, Fluorine Rubber Seal; Cut Off Gaskets
What is Fluorine rubber?
FKM (USA) and FPM (Europe ) are abbreviations of vinylidene fluoride (vinylidene fluoride ) as fluoroelastomers, which were produced by Dupont in 1956 under the trade name Viton. Thus Viton is known as FKM for many people, but it's not.
Fluorine rubber containing fluorine, fluorine atoms and carbon atoms C-F key performance is high, the adsorption effect of fluoride atoms greatly at the same time depends on the special molecular structure, the fluorine rubber has excellent heat resistance, drug resistance, solvent resistance, resistance to fluoride, vacuum resistance, oil resistance, aging resistance, and other properties.
Fluororubber was first used in the field of aviation, but the most widely used is in the field of automobile, accounting for 60%~70% of the total application.
Advantages of our machine:
1. High precision for each cut. Ensure the quality of each unit.
2. High efficiency compared to traditional cutting method.
3. Not only for flat sections, but our cutting machine can also do a fine cutting job on raised parts.
4. A new method of making seal, free of flashes, burrs;
Machine Process Chart :
PROCESS:
To produce the plain section gaskets, rubber tubes – already cut to length – are stretched onto mandrels. Loading and unloading of the tubes onto the mandrels is done quickly by a special unit and without any particular skill being required.
A knife carriage travels along the tubes, cutting the rings to the required length, either with slotting tools or circular knives.
The use of the most modern servo-technologies makes the mandrel machines even more versatile: knife penetration speed and carriage advance are fully free-programmable – for optimal processing of materials with different characteristics.
Automaticlly discharging .
Technical parameters:
Our standard machine is suitable for this sample.
Order Options:
-
Nos of mandrel: 1/2/3/4 are available;
-
Machine Painting Color;
-
Range of Cutting Length;
-
Range of Cutting Diameter;
-
Water cooling system;
-
Tail Bracket (As the supporting device for longer-length products)
-
Auxiliary pushing device for loading;
-
Auxiliary splice device for unloading;
Tags:
FKM GASKETS, VITION GASKETS, FPM GASKETS.Gasket cutting machine;
latex cutting device, latex bands, Yoga belt, sports elastic belt, Mandrel Cutting Machine; Slicing Cutting Machine; Precision machines for cutting off rings and slices; Oil filter sealing gasket making machine;
Slice machine; Slicer; Circular knife cutting machines for cutting gaskets; Rubber gasket cutting machine; Gasket making machine;
Rotary style gasket cutter; Rotary cutting machine; Rubber slitting machine; Machines for hose and tube processing;
Cutting machine for hoses and tube processing; Machine for rubber and plastic processing; Cutting machine for gaskets and o-rings;
A free sample trial is available, please contact us freely !!!
CONTACT INFOS
Person: Susanna
INTER-CHINA RUBBER MACHINERY CO., LTD.
www.rubbermachinery-china.com
Mob:+0086-13179487165
SKYPE: rubbercutting
Email: info@rubbermachinery-china.com
|
|

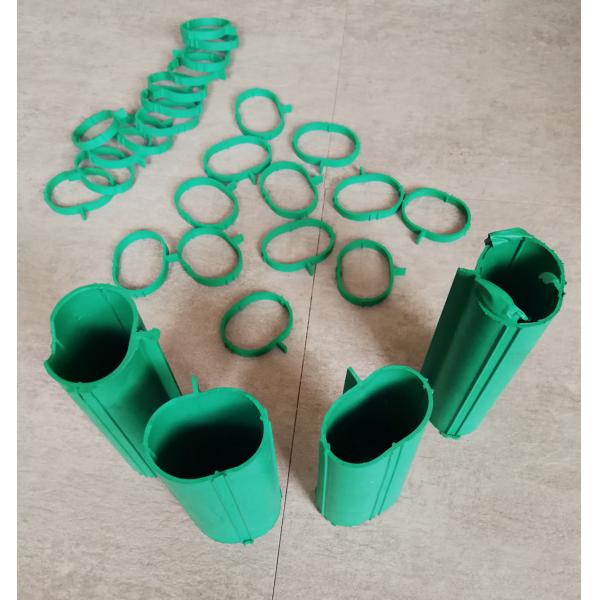

Case Study: Cutting Machine For FKM Gaskets, FPM Gasket,Viston Seal, Fluorine Rubber Seal; Cut Off Gaskets Images
|
